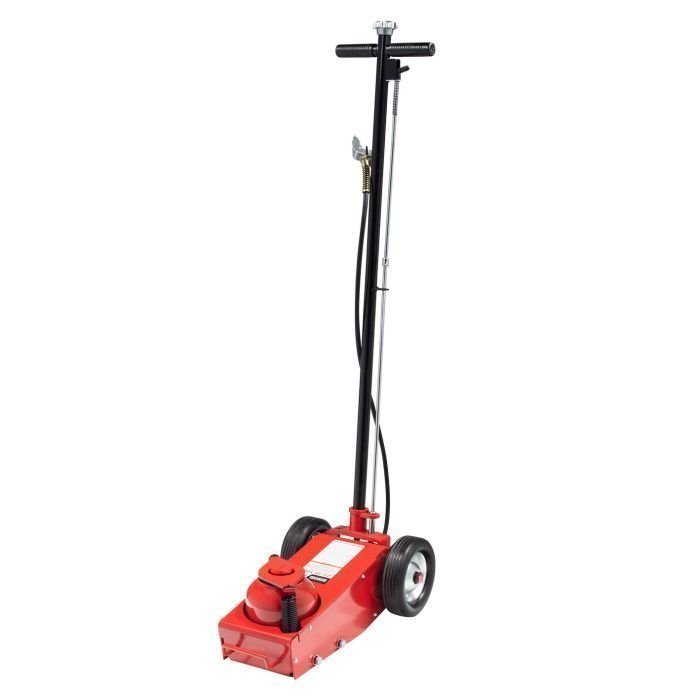

Sunex Two Stage 22-35 Ton Air Truck Jack

The Sunex Tools Two Stage 22-35 Ton Air Truck Jack features a self-retracting two-stage ram with 35 tons capacity at the first stage and 22 tons capacity at the second stage. The contoured chassis base allows wheels to contact the ground when not under load while raising the wheels off the ground when under load to prevent damage to the vehicle. The narrow chassis fits easily between tandem wheels and the large 8″ diameter wheels allow it to move maneuvered around the shop or garage easily. The two-piece handle has 3 locking positions for easy positioning under the vehicle. Has a safety overload bypass valve and wiper seals to protect the hydraulic system from contaminants.

Features

• Two Stage Capacity
  • 35 Ton First Stage
  • 22 Ton Second Stage
• Contoured Chassis Base
  • Allows Wheels to Contact Ground When Not Under Load
  • Raises Wheels Off the Ground When Under Load to Prevent Damage
• Self-Retracting Two-Stage Ram
• Narrow Chassis Design Fits Easily Between Tandem Wheels
• Large 8″ Diameter Wheels for Ease of Operation
• Two Piece Handle
• Lever Adjusts the Handle to 3 Positions for Easy Positioning Under the Vehicle
• Air Valve Raises the Ram to a Maximum Height of 19.75″
• Push Valve Lever for Fast Air Control
• Safety Overload Bypass Valve
• Wiper Seals Protect Hydraulic System from Contaminants

Specifications

• 1st Stage Capacity: 35 Tons @ 100 psi
• 2nd Stage Capacity: 22 Tons @ 100 psi
• Min Height: 8.62″
• Travel: 7.75″
• Ext. Screw Adj.: 3.375″
• Max Height: 19.75″
• Chassis Dimensions: 24″ x 13.75″
• Wheel Diameter: 8″
• Wheel Material: Rubber
• Saddle Diameter: 2″
• Saddle Material: Steel
• Handle Length: 49″
• Jack Frame: Steel
• Release Type: Valve
• Number of Pistons: Single Piston
• Air Pressure: 90-145 psi
• Net Weight: 110 lbs.
• Shipping Weight: 130 lbs.
• Warranty: 3 Year
